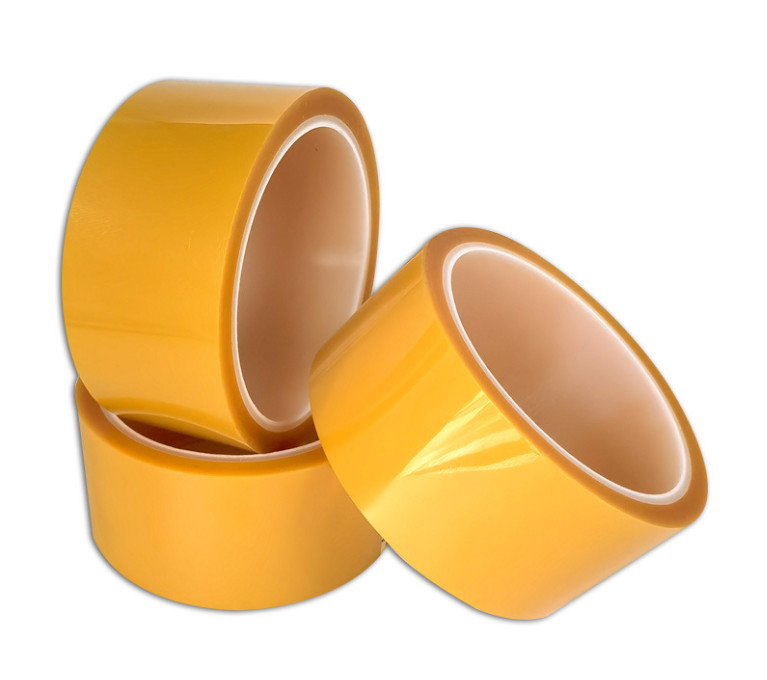

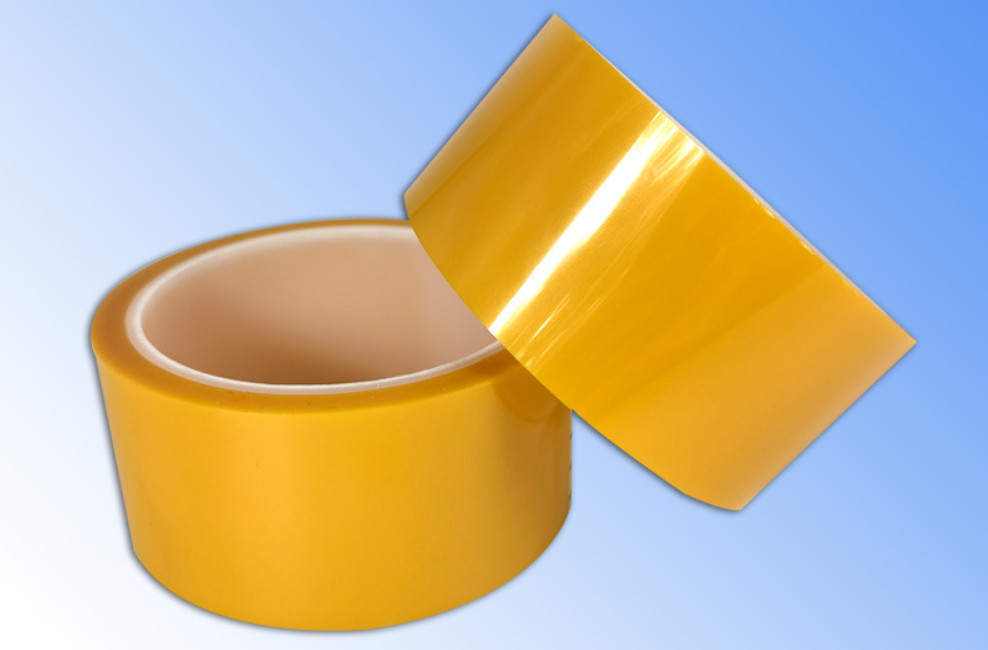

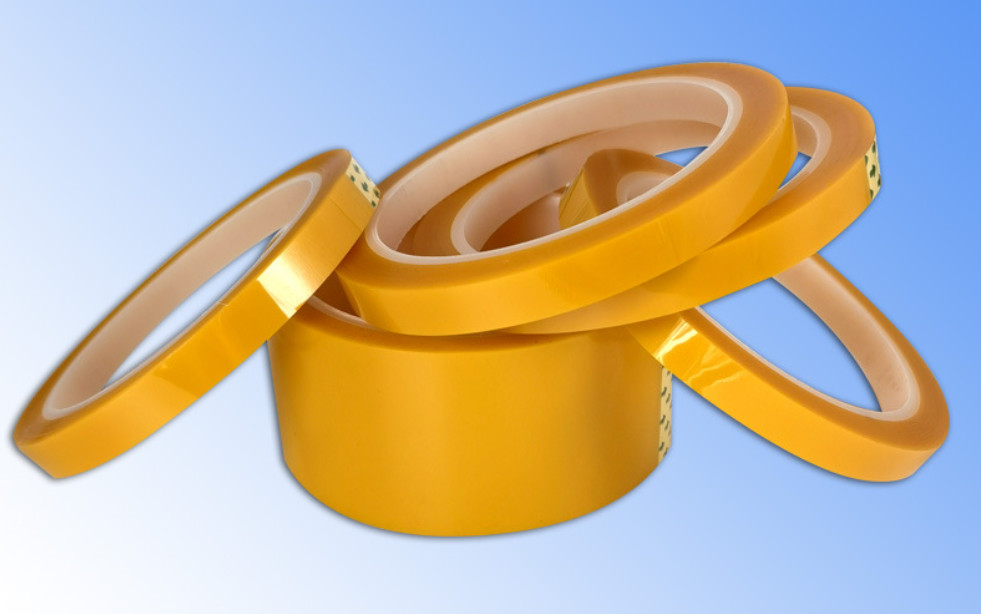

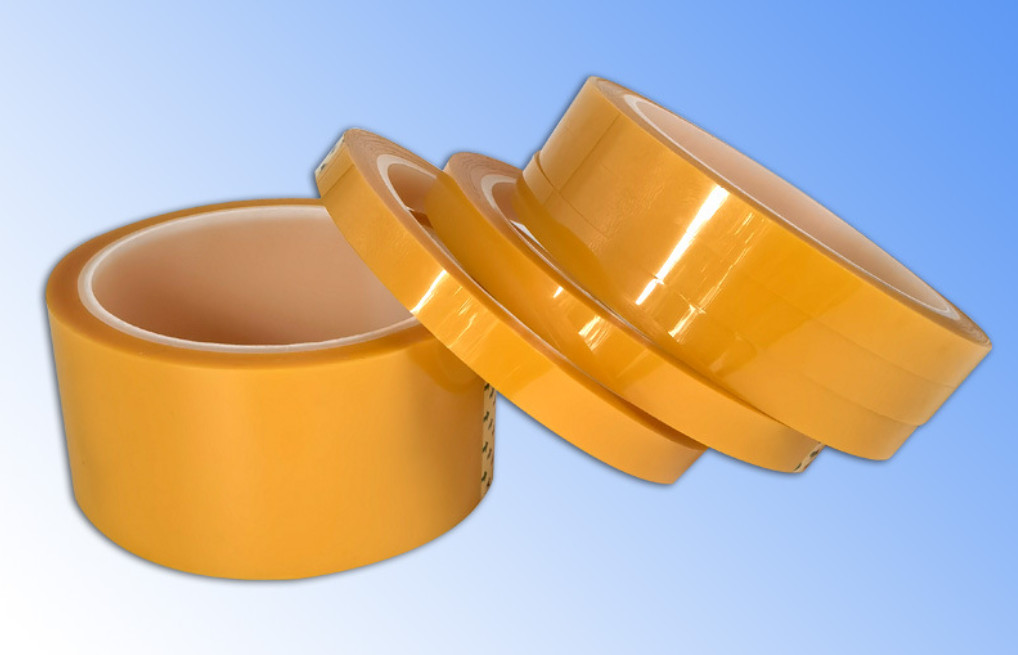

Waterproof Electroplating Yellow PET 6 Inch Masking Tape Wear Resistant

Place of Origin CHINA
Brand Name UNIFORM
Certification RoHS, ISO9001, CE, TUV
Model Number AUTC-PT-228
Minimum Order Quantity 5,000rolls
Price Negotiable
Packaging Details carton box and wooden box
Delivery Time 10-12days
Payment Terms T/T, Western Union
Supply Ability 50,000rolls/day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Polyester Colour Green, Customized
Length 33m-2000m Width 12-220mm
Thickness 40mic-90mic Temperature Resistance 180-220℃
High Light

Electroplating 6 inch masking tape

,

Yellow 6 inch masking tape

,

Yellow polyester masking tape

Leave a Message
Product Description

Pet Yellow High Temperature Resistant Wear-Resistant Tape Spray Electroplating Masking Waterproof Electronic Industrial



Feature

* Backing leaves a sharp paint line.

* Linered version available for die-cuts.

* Polyester films offer excellent thermal, abrasion, and chemical resistance while maintaining their flexibility.
* Green color makes tape placement obvious for both application and removal.
* Silicone adhesives offer high heat resistance compared to many rubber and acrylic adhesives, reducing failure due to softening, oozing, and adhesive transfer.
* Silicone adhesives adhere well to tough-to-stick-to surfaces like silicone liners and fixtures coated with mold release.
* Silicone adhesive removes cleanly from many surfaces.



Yellow Polyester PET tape
Polyester tape is PET film coated with silicone adhesive. They can be used for large variety of masking applications,including high temperature powder coating,e-coating, electroplating and anodizing.Available in multiple diameters.


Product Description

Product name
Blue color polyimide tape
Width
can be customized
Length
33m
Substrate
Pet
Backing material
Polyimide
Thickness
can be customized
Long-term temperature resistance
200
Custom processing
Yes
Short-term temperature resistance
360
Glue system
silicone
Extension factor
1
Features
High temperature resistance
multiple
usage
Thick meat
can be customized
Tear-off method
requires the help of a tool
Can withstand temperature range
320
Color
yellow
Printing
content
Release paper type
can be customized
Core
material
Temperature resistance
320 degrees
Series
High Temperature Tape
Model thickness
0.05mm
Peeling force
400-800g
Use scenario
Solder protection

Technical Parameter
Test Item
Date
Test method
Adhesion to Steel
≧6N/25mm
GB/T 2792 -2014
Tensile Strength
≧140N/25mm
GB/T 30776-2014
Enlogtion Rate
≧30%
GB/T 14517-1993
Backing Thickness
0.025mm
GB/T 7125-2014
Total Thickness
0.055mm
GB/T 7125-2014
Temperature Use Range
Up to 356°F (180°C)-30min
oven





Polyester PET tape application

* Masking for powdercoat painting.
* Masking for 3D printer
* Holding and splicing difficult to stick to surfaces such as silicone liner.
* Glass edge protection / metal surface protection
