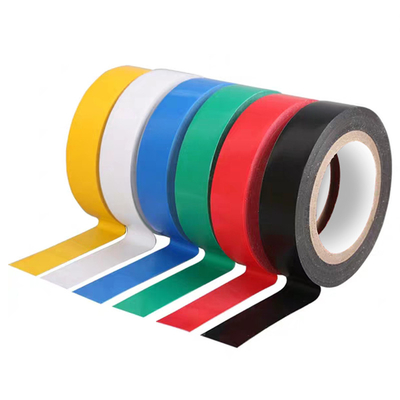

Electrical Insulation PVC Adhesive Tape Waterproof

Place of Origin CHINA
Brand Name UNIFORM
Certification RoHS, ISO9001, CE, TUV
Model Number AUTC-PVCT-650
Minimum Order Quantity 5,000rolls
Price Negotiable
Packaging Details carton box and wooden box
Delivery Time 10-12days
Payment Terms T/T, Western Union
Supply Ability 50,000rolls/day
Product Details
Material PVC Colour White, Yellow, Blue, Brown, Etc.
Length 5y/10y/15y/20y Width 17-50mm
Thickness 0.13mm-0.18mm Feature Waterproof
High Light

Insulation PVC Adhesive Tape

,

Waterproof PVC Adhesive Tape

,

Insulation pvc tape waterproof

Leave a Message
Product Description

Customised Electrical Tape Pvc Electrical Insulation Tape In Stock Waterproof Flex Vinyl Electrical Pvc Insulating Tape





Features:
The tape based on PVC film is coated with rubber pressure-sensitive adhesive, which has good insulation, pressure resistance and weather resistance. It is suitable for wire connection, electrical insulation protection, automobile wiring and other electrical and electrical insulation protection.
Anti-static warning tape can be used for floor area warning, packing box sealing warning, product packaging warning, etc. Warning tape has the advantages of waterproof, moisture-proof, weather resistance, corrosion resistance, anti-static, etc. It is suitable for underground pipes such as air ducts, water pipes, and oil pipes. Corrosion protection of the road. Twill printing tape can be used for warning signs on the ground, columns, buildings, traffic and other areas.

Usage:
For integration wiring harness/electric wire winding/insulation protection/eliminate magnetic coil/Communications wiring, etc.

Product Name Model NO. Carrier Color Film thickness (mm) Tensilestrength (kg/25mm) Adhesion to steel (N/25mm) Elongation at break (%) Voltage resistance (KV) validity date Months
Electrical adhesive tape AUTC650-1 PVC film colorful 0.11 1.5 0.15 150 4.5 6
AUTC650-2 0.13 2.0 0.15 160 5
AUTC650-3 0.13 2.0 0.15 160 5
AUTC650-4 0.20 3.5 0.15 200 8
AUTC650-5 0.19 3.5 0.18 200 8
AUTC650-6 0.19 3.5 0.15 200 8
AUTC650-7 0.15 2.8 0.15 160 6
AUTC650-8 0.15 2.8 0.18 160 6
AUTC650-9 0.18 3.2 0.18 180 8
AUTC650-10 0.18 3.2 0.18 180 8
AUTC650-11 0.18 3.2 0.18 180 8
AUTC650-12 0.18 3.2 0.18 180 8
AUTC650-13 0.19 3.5 0.18 200 8
AUTC650-14 0.13 1.5 0.15 120 4
AUTC650-15 0.18 2.0 0.15 160 6







Electrical Insulation PVC Adhesive Tape Waterproof 0Electrical Insulation PVC Adhesive Tape Waterproof 1Electrical Insulation PVC Adhesive Tape Waterproof 2Electrical Insulation PVC Adhesive Tape Waterproof 3Electrical Insulation PVC Adhesive Tape Waterproof 4



Applications

Electrical Insulation PVC Adhesive Tape Waterproof 5



Electrical Insulation PVC Adhesive Tape Waterproof 6Electrical Insulation PVC Adhesive Tape Waterproof 7Electrical Insulation PVC Adhesive Tape Waterproof 8
