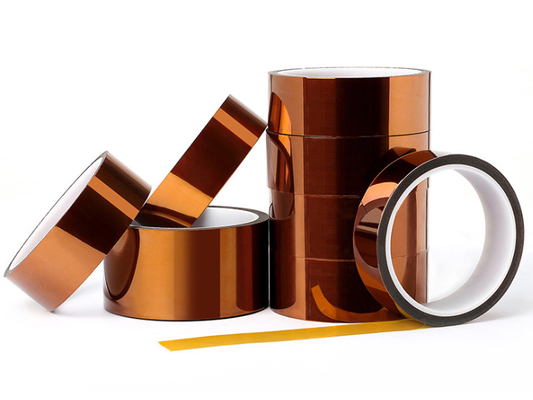

Silicone Polyimide Adhesive Tape Film High Temp

Place of Origin CHINA
Brand Name UNIFORM
Certification RoHS, ISO9001, CE, TUV
Model Number AUTC-PAT-349
Minimum Order Quantity 50,000rolls
Price Negotiable
Packaging Details carton box and wooden box
Delivery Time 10-12days
Payment Terms T/T, Western Union
Supply Ability 5000,000rolls/day
Product Details
Material Polyimide Colour Customized
Length Customized Width Customized
Thickness Customized Feature Waterproof
High Light

Polyimide Adhesive Tape Film

,

Silicone Polyimide Adhesive Tape

,

Silicone polyimide film tape

Leave a Message
Product Description

High Temp Lithium Battery Insulating Polyimide Film Adhesive Insulation Tape





Feature
1, Polyimide film offer excellent thermal,abrasion and chemical resistance while maintaining their flexibility.
2, Amber color makes tape placement obvious for both application and removal
3, Thin backing leaves a sharp paint line
4, Silicone adhesive offer high heat resistance,reducing failure due to softening,oozing and adhesive transfer.
5, Silicone adhesive remove cleanly without glue residue


Description
The Item Is A Simple And Practical Tape, Which Is Mainly Made Of Durable Polyimide And Silicone Materials, And Features One-Side Self-Adhesive Design For Easy To Use. It Is Highly Resistant To Heat And Chemicals, Puncture And Tear Resistant At High Temperatures And Offers Optimal Performance In Electrical And Thermal Insulation, And So It Is Widely Used As Electrical Insulation Transformer, Motor, Coil, Capacitor And Frequency Conversion Power Supply In Electronic Industry.





Application
1, Masking parts for powder coat painting
2, Masking edges of overlap seams in metal bonding process where excess adhesive flows onto tape. Minimizes clean up on tape removal.
3, PCB,SMT masking protection in electronics
4, Excellent solvent and moisture resistance.
5, Insulation protection for electrical devices like transformer and capacitor

Details

Backing
0.075mm Polyimide film
Adhesion
Silicone
Color
Amber
Thickness (mm)
0.11
Width(mm)
500mm
Length (m)
33M
Tensile Strength (N/25mm)
≥160
Elongation (%)
≥60
Breakdown strength (N/25mm)
≥200
Voltage resistance (KV)
12
Adhesion (N/25mm)
≥6
Temperature Resistance (℃)
260℃
