Antistatic Adhesive ESD Polyimide Tape High Temperature Polyimide Tape Single Sided

Place of Origin CHINA
Brand Name UNIFORM
Certification RoHS, ISO9001, CE, TUV
Model Number AUTC-PAT-655
Minimum Order Quantity 50,000rolls
Price Negotiable
Packaging Details carton box and wooden box
Delivery Time 10-12days
Payment Terms T/T, Western Union
Supply Ability 5000,000rolls/day
Product Details
Material Polyimide Colour Gold, Customized
Length 38/50m Width 20mm
Thickness 60μm (±10μm) Feature Waterproof
High Light

Adhesive esd polyimide tape

,

Antistatic esd polyimide tape

,

ESD high temperature polyimide tape

Leave a Message
Product Description

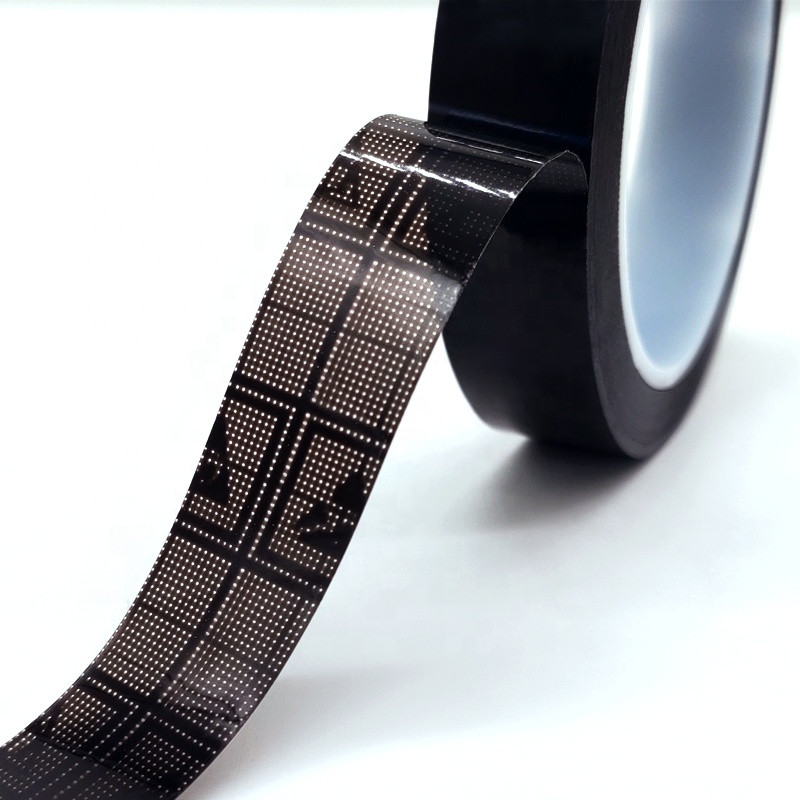

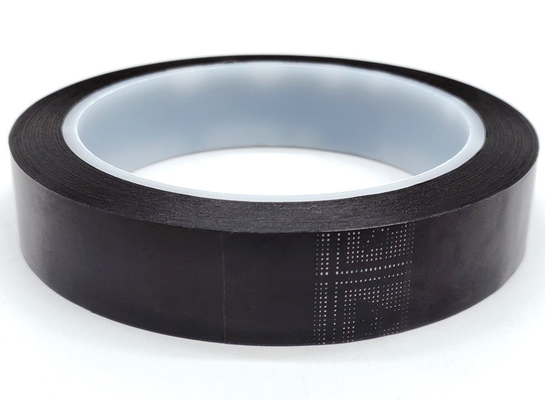

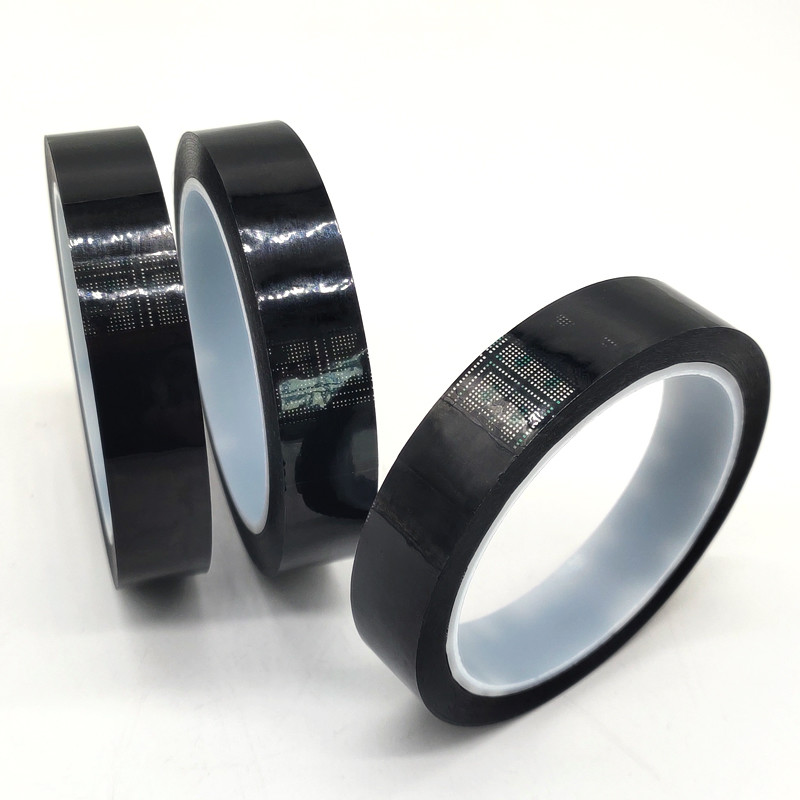

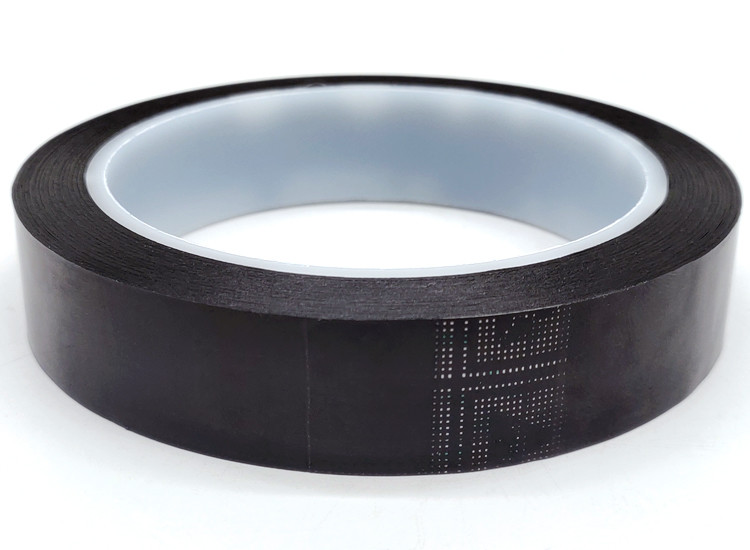

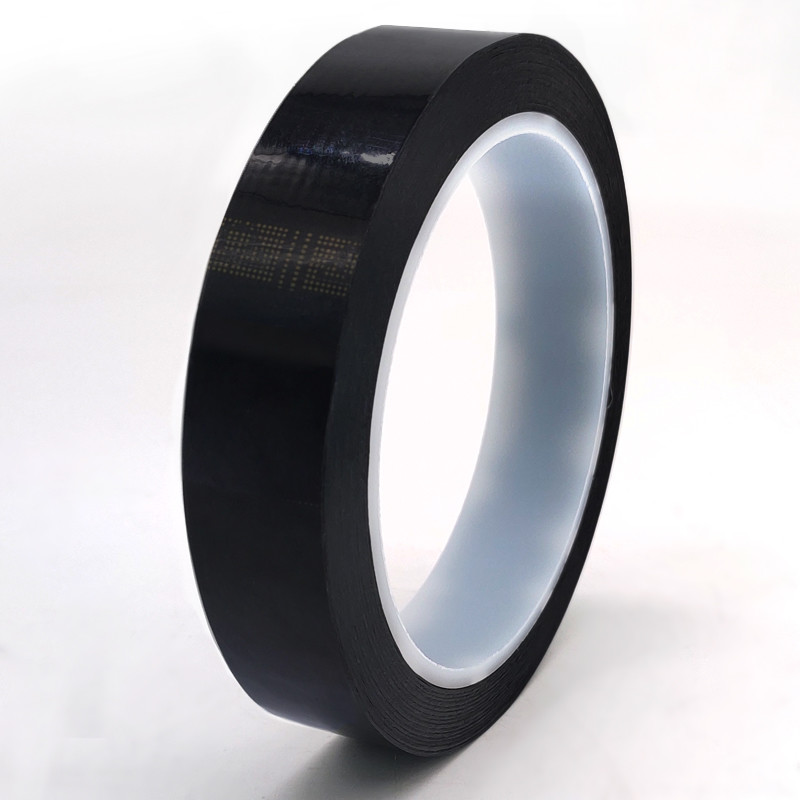

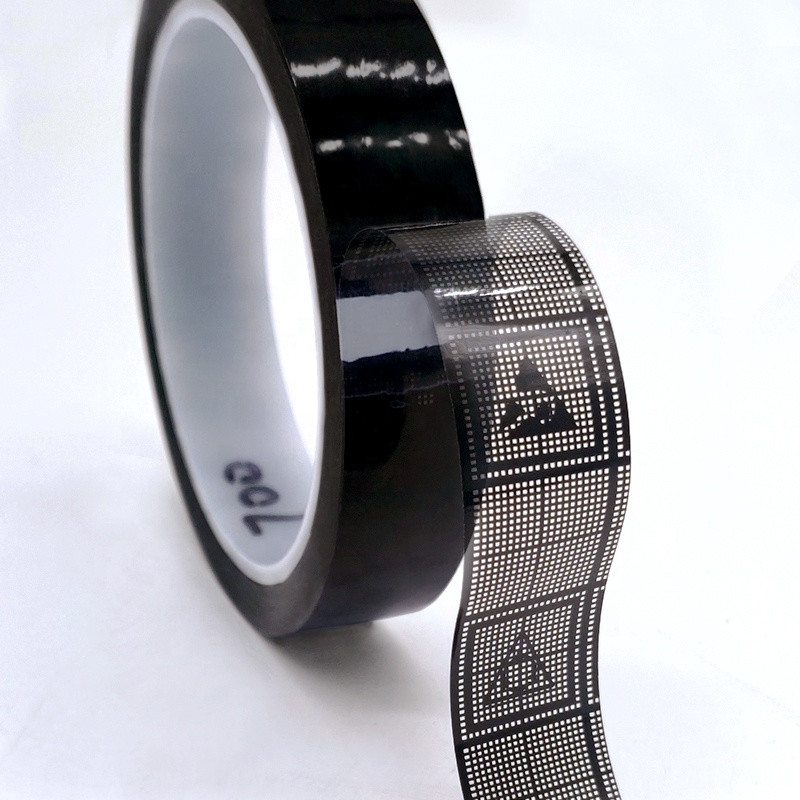

Single Sided ESD Antistatic Grid Masking Adhesive Tape, Black Polyimide ESD Marking Tape



Anti-static brown/black OPP film ESD mesh tape is made of OPP film and acrylic adhesive.
It is a high-performance adhesive tape
with anti-static function. It has excellent electrostatic shielding and antistatic characteristics.
It is widely used in EMI shielding and packaging applications, and is very suitable for products sensitive to static electricity, such as semiconductors
and electronic components.



Application
1. The thermocouple wire shall be pasted when measuring the temperature of the reflux furnace;
2. It is used to paste the flexible circuit board (FPC) on the fixture, so as to carry out a series of processes such as printing, patch and testing;
3. It can be wrapped on the cable and used as insulating tape;
4. It can be pasted on the connector for picking up materials by the mounter, so as to replace the iron sheet;
5. It can be die cut into any other shape for some special purposes.




Details
Index (test standard)
Unit
Spec.
Material
/
OPP film + acrylic adhesive
Width
mm
6/ 8/ 10/ 12/ 15/ 18/ 20/ 24/ 30/ 40/ 50/60 (or customized)
Length
M
36M (or customized)
Total thickness
μm
60 ±0.5
Color
/
Transparent, brown
Elongation at break
%
60
Surface resistance
Ω/cm²
106~109
Charge generation
V
<100
Static decay time
s
<5
