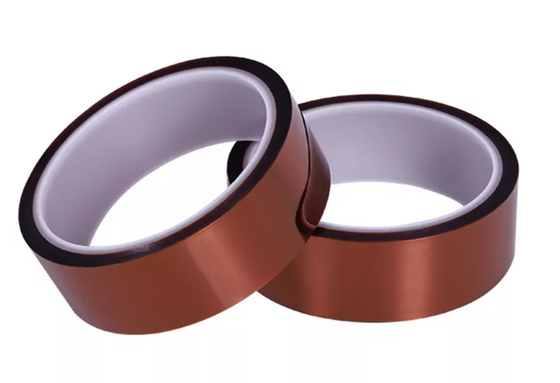

Heat Resistant Silicone Double Sided Polyimide Adhesive Tape Insulation

Place of Origin CHINA
Brand Name UNIFORM
Certification RoHS, ISO9001, CE, TUV
Model Number AUTC-PAT-608
Minimum Order Quantity 50,000rolls
Price Negotiable
Packaging Details carton box and wooden box
Delivery Time 10-12days
Payment Terms T/T, Western Union
Supply Ability 5000,000rolls/day
Product Details
Material Polyimide Colour Black
Length 33m Width 50mm
Thickness 0.075mm Feature Waterproof
High Light

Insulation Polyimide Adhesive Tape

,

Double Sided Polyimide Adhesive Tape

,

Insulation Double Sided Polyimide Tape

Leave a Message
Product Description

Insulation Heat Resistant Silicone Adhesive Double Sided Polyimide Tape



Description
Double Sided Polyimide Tape are made of Polyimide Film that is double coated with a custom formulated silicone pressure sensitive adhesive system. The product is designed to bond to silicone substrates as well as other difficult to bond surfaces.

Application
* Masking parts for powder coat painting.
* Masking edges of overlap seams in metal bonding process where excess adhesive flows onto tape. Minimizes clean-up on tape removal.
* PCB,SMT masking protection in electronics
* H-class insulation protection for electrical devices like transformer and capacitor.


Feature
* Polyimide films offer excellent thermal, abrasion, and chemical resistance while maintaining their flexibility.
* Amber color makes tape placement obvious for both application and removal.
* Thin backing leaves a sharp paint line and some conformability.
* Silicone adhesive offer high heat resistance,reducing failure due to softening, oozing, and adhesive transfer.
* Silicone adhesive removes cleanly with no glue residue.



Details

Backing
0.075mm Polyimide film
Adhesion
Silicone
Color
Amber
Thickness (mm)
0.11
Width(mm)
500mm
Length (m)
33M
Tensile Strength (N/25mm)
≥160
Elongation (%)
≥60
Breakdown strength (N/25mm)
≥200
Voltage resistance (KV)
12
Adhesion (N/25mm)
≥6
Temperature Resistance (℃)
260℃
