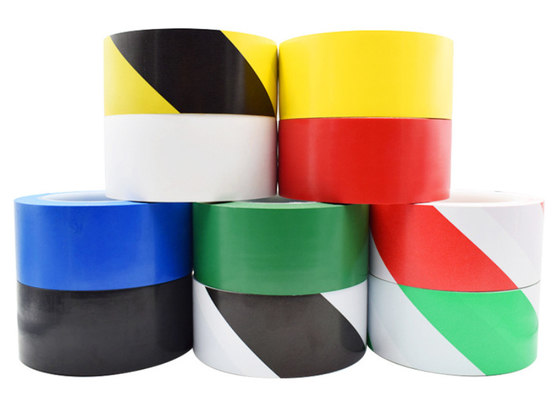

Waterproof PVC Electrical Insulation Tape White 50mm For Plastic Pipe Rubber

Place of Origin CHINA
Brand Name UNIFORM
Certification RoHS, ISO9001, CE, TUV
Model Number AUTC-PVCT-509
Minimum Order Quantity 5,000rolls
Price Negotiable
Packaging Details carton box and wooden box
Delivery Time 10-12days
Payment Terms T/T, Western Union
Supply Ability 50,000rolls/day
Product Details
Material PVC Colour White, Yellow, Blue, Brown, Etc.
Length 33m Width 45mm
Thickness 0.13mm Feature Waterproof
High Light

Waterproof electrical insulation tape

,

electrical insulation tape 50mm

,

Electrical white pvc tape 50mm

Leave a Message
Product Description

White Color PVC Electrical Tape Floor Warning Tape Waterproof Insulation Pipe Rubber Plastic Insulation Tape



Features:
PVC film as carrier, coating rubber pressure-sensitive adhesive special for good insulation, Flame-resistant, voltage-resistance, cold-resistance and other properties

How to use:
Wrap it in a semi-overlapping way. When wrapping the last layer, do not stretch it to prevent warping.


Specification:

Backing material: PVC
Adhesive: Rubber pressure-sensitive adhesive
Colors: black, white, red, green, yellow, etc.


Usage:
For integration wiring harness/electric wire winding/insulation protection/eliminate magnetic coil/Communications wiring, etc.

Product Name Model NO. Carrier Color Film thickness (mm) Tensilestrength (kg/25mm) Adhesion to steel (N/25mm) Elongation at break (%) Voltage resistance (KV) validity date Months
Electrical adhesive tape AUTC650-1 PVC film colorful 0.11 1.5 0.15 150 4.5 6
AUTC650-2 0.13 2.0 0.15 160 5
AUTC650-3 0.13 2.0 0.15 160 5
AUTC650-4 0.20 3.5 0.15 200 8
AUTC650-5 0.19 3.5 0.18 200 8
AUTC650-6 0.19 3.5 0.15 200 8
AUTC650-7 0.15 2.8 0.15 160 6
AUTC650-8 0.15 2.8 0.18 160 6
AUTC650-9 0.18 3.2 0.18 180 8
AUTC650-10 0.18 3.2 0.18 180 8
AUTC650-11 0.18 3.2 0.18 180 8
AUTC650-12 0.18 3.2 0.18 180 8
AUTC650-13 0.19 3.5 0.18 200 8
AUTC650-14 0.13 1.5 0.15 120 4
AUTC650-15 0.18 2.0 0.15 160 6







Waterproof PVC Electrical Insulation Tape White 50mm For Plastic Pipe Rubber 0Waterproof PVC Electrical Insulation Tape White 50mm For Plastic Pipe Rubber 1Waterproof PVC Electrical Insulation Tape White 50mm For Plastic Pipe Rubber 2Waterproof PVC Electrical Insulation Tape White 50mm For Plastic Pipe Rubber 3Waterproof PVC Electrical Insulation Tape White 50mm For Plastic Pipe Rubber 4



Applications

Waterproof PVC Electrical Insulation Tape White 50mm For Plastic Pipe Rubber 5



Waterproof PVC Electrical Insulation Tape White 50mm For Plastic Pipe Rubber 6Waterproof PVC Electrical Insulation Tape White 50mm For Plastic Pipe Rubber 7Waterproof PVC Electrical Insulation Tape White 50mm For Plastic Pipe Rubber 8
