Waterproof Insulation PVC Tape 25mm Yellow Flame Resistant
| Place of Origin | CHINA |
|---|---|
| Brand Name | UNIFORM |
| Certification | RoHS, ISO9001, CE, TUV |
| Model Number | AUTC-PVCT-516 |
| Minimum Order Quantity | 5,000rolls |
| Price | Negotiable |
| Packaging Details | carton box and wooden box |
| Delivery Time | 10-12days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 50,000rolls/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | PVC | Colour | Yellow |
|---|---|---|---|
| Length | 10y/15y/20y | Width | 10-50mm |
| Thickness | 0.10mm-0.18mm | Feature | Waterproof |
| High Light | Waterproof pvc tape 25mm,Yellow pvc tape 25mm,yellow pvc tape 25mm |
||
Product Description

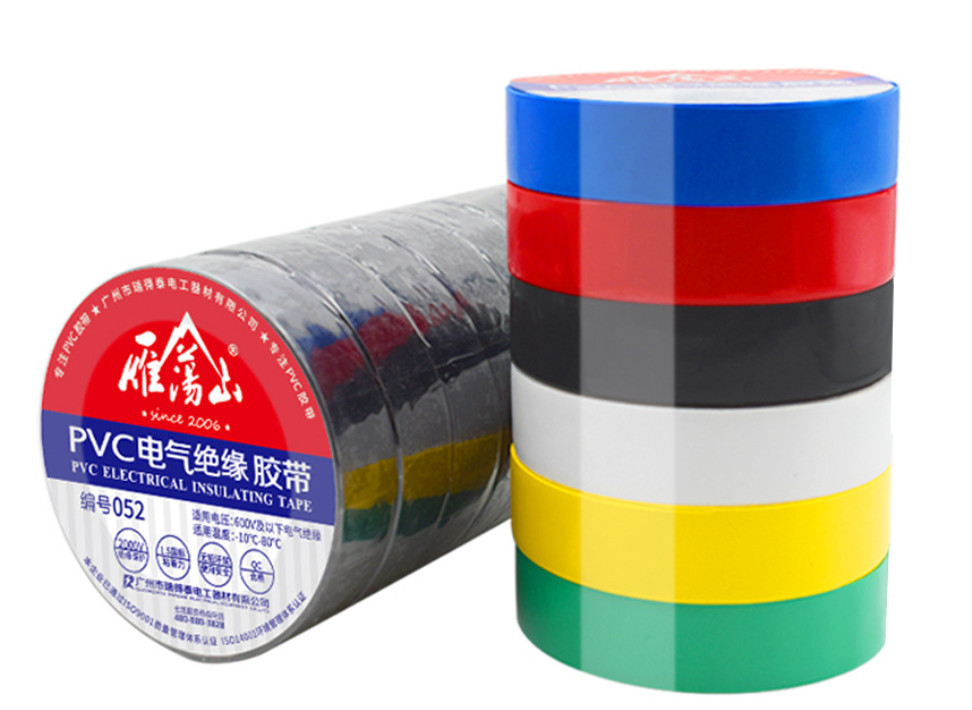

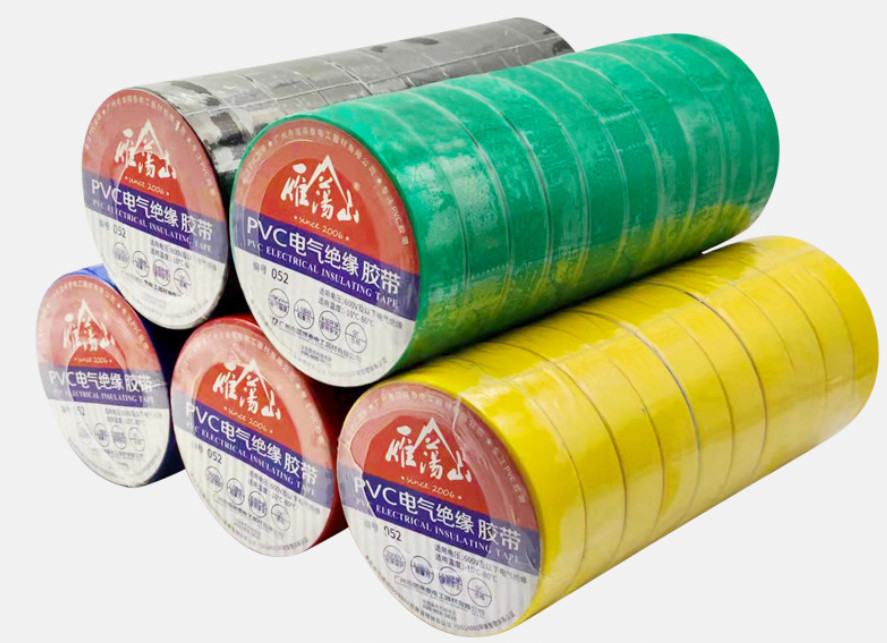

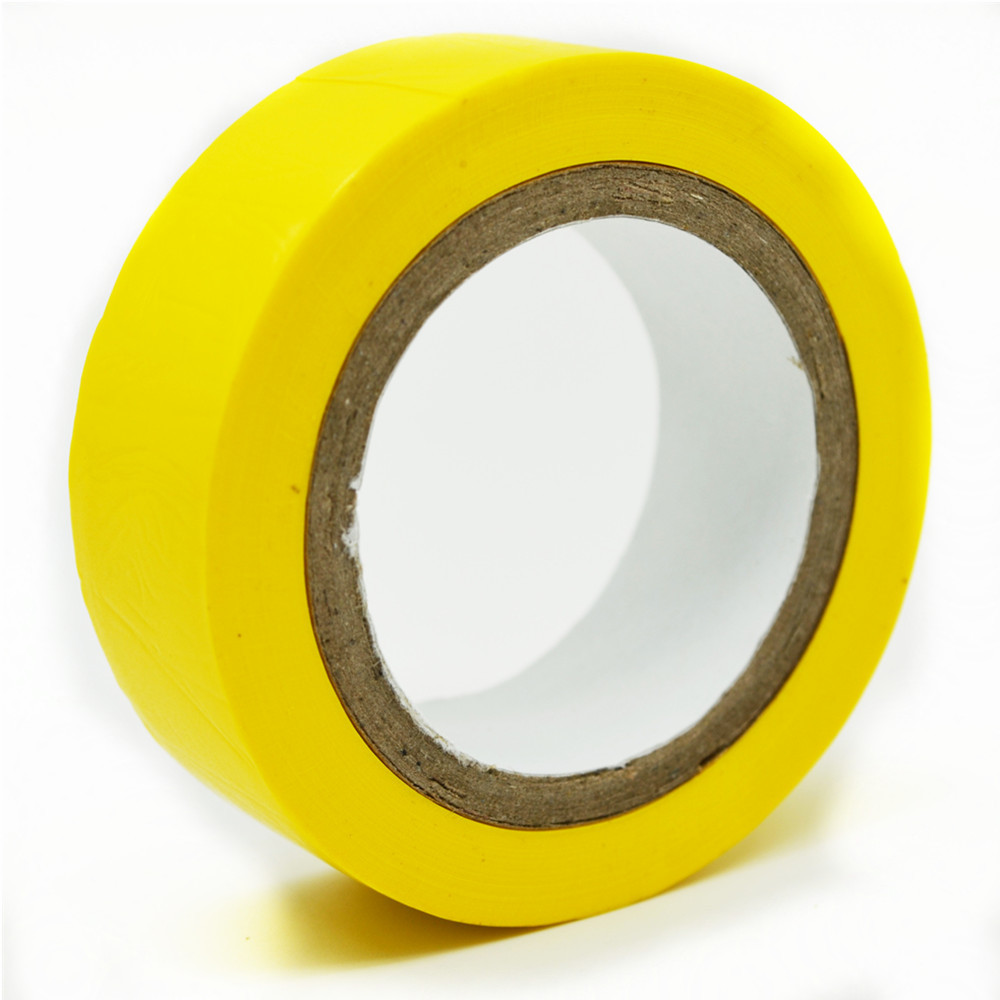

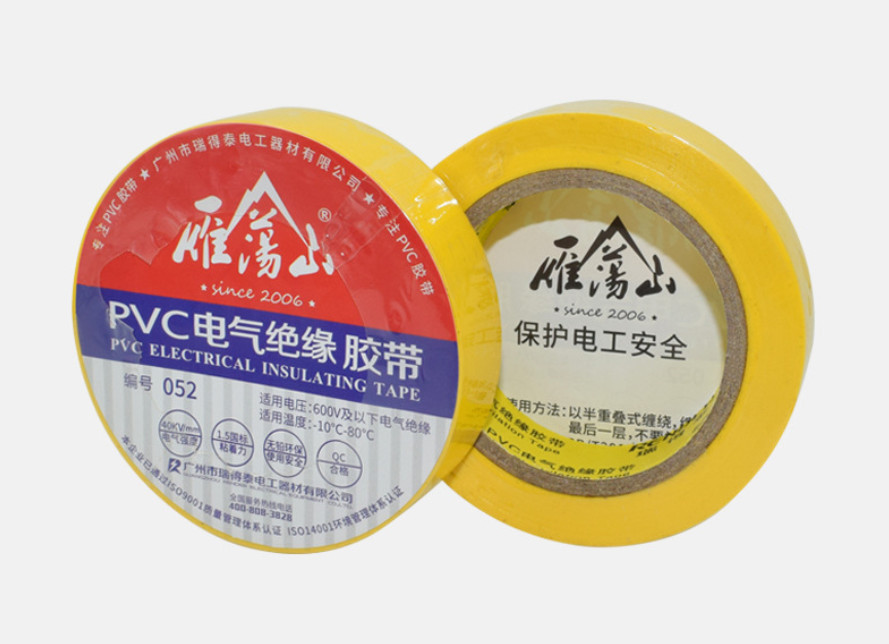

Yellow Color PVC Electrical Tape Waterproof Insulation Pipe Rubber Plastic Insulation Tape
Specification:
Adhesive: Rubber pressure-sensitive adhesive
Backing material: PVC
Colors: black, white, red, green, yellow, etc.
Usage:
For integration wiring harness/electric wire winding/insulation protection/eliminate magnetic coil/Communications wiring, etc.
| Product Name | Model NO. | Carrier | Color | Film thickness (mm) | Tensilestrength (kg/25mm) | Adhesion to steel (N/25mm) | Elongation at break (%) | Voltage resistance (KV) | validity date Months |
| Electrical adhesive tape | AUTC650-1 | PVC film | colorful | 0.11 | 1.5 | 0.15 | 150 | 4.5 | 6 |
| AUTC650-2 | 0.13 | 2.0 | 0.15 | 160 | 5 | ||||
| AUTC650-3 | 0.13 | 2.0 | 0.15 | 160 | 5 | ||||
| AUTC650-4 | 0.20 | 3.5 | 0.15 | 200 | 8 | ||||
| AUTC650-5 | 0.19 | 3.5 | 0.18 | 200 | 8 | ||||
| AUTC650-6 | 0.19 | 3.5 | 0.15 | 200 | 8 | ||||
| AUTC650-7 | 0.15 | 2.8 | 0.15 | 160 | 6 | ||||
| AUTC650-8 | 0.15 | 2.8 | 0.18 | 160 | 6 | ||||
| AUTC650-9 | 0.18 | 3.2 | 0.18 | 180 | 8 | ||||
| AUTC650-10 | 0.18 | 3.2 | 0.18 | 180 | 8 | ||||
| AUTC650-11 | 0.18 | 3.2 | 0.18 | 180 | 8 | ||||
| AUTC650-12 | 0.18 | 3.2 | 0.18 | 180 | 8 | ||||
| AUTC650-13 | 0.19 | 3.5 | 0.18 | 200 | 8 | ||||
| AUTC650-14 | 0.13 | 1.5 | 0.15 | 120 | 4 | ||||
| AUTC650-15 | 0.18 | 2.0 | 0.15 | 160 | 6 |
