PVC Film + Rubber Pressure Sensitive Adhesive PVC Flame Retardant Electrical Insulation Adhesive Tape

Place of Origin CHINA
Brand Name UNIFORM
Certification RoHS, ISO9001, CE, TUV
Model Number AUTC-PVCT-335
Minimum Order Quantity 5,000rolls
Price Negotiable
Packaging Details carton box and wooden box
Delivery Time 10-12days
Payment Terms T/T, Western Union
Supply Ability 50,000rolls/day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material PVC Colour White, Yellow, Blue, Brown, Etc.
Length 10-25m Width 19-25mm
Thickness 0.13mm-0.15mm Feature Waterproof
High Light

PVC Film Electrical Insulation Tape

,

0.15mm Waterproof Electrical Insulation Tape

,

Rubber Electrical Insulation Tape

Leave a Message
Product Description

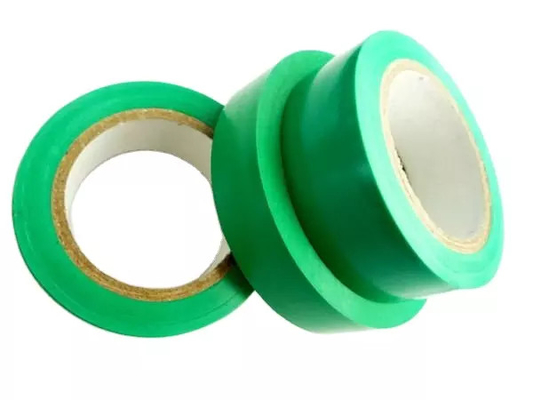

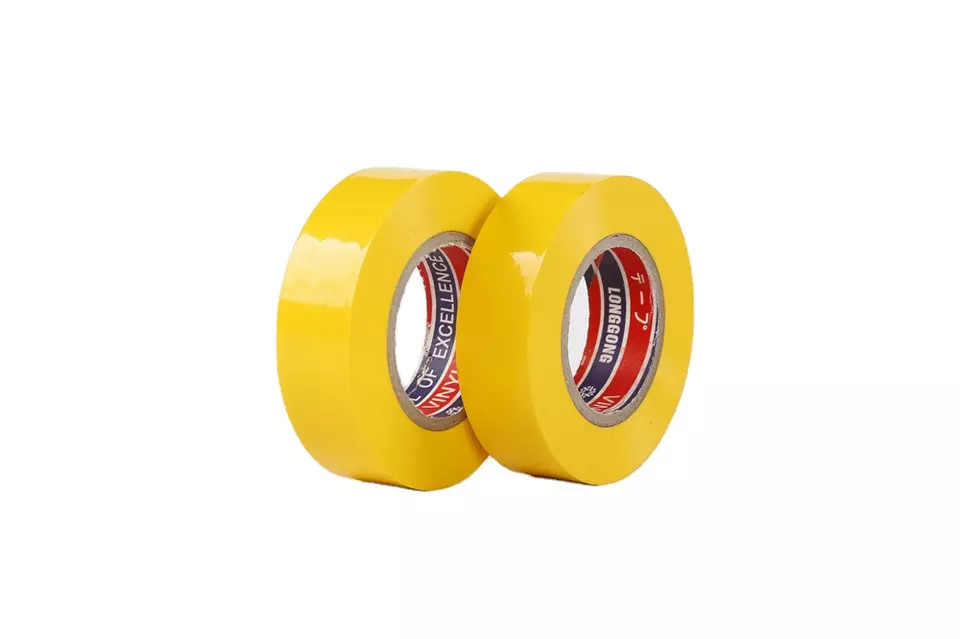

PVC Film + Rubber Pressure Sensitive Adhesive PVC Flame Retardant Electrical Insulation Adhesive Tape

pvc tape is made of PVC film and rubber adhesive, which is widely used for insulating wrapping of electric wires and cables. It can be used both indoors and outdoors. It is charaterized by good flexibility, anti-abrasion, moistureproof and resistance to acid & alkali.



Specification:
1. Width:18mm,19mm or at your request.
2. Length: 10yds, 20yds, 10m, 20m or according to client's requirement
3. Thickness: 0.09mm-0.25mm

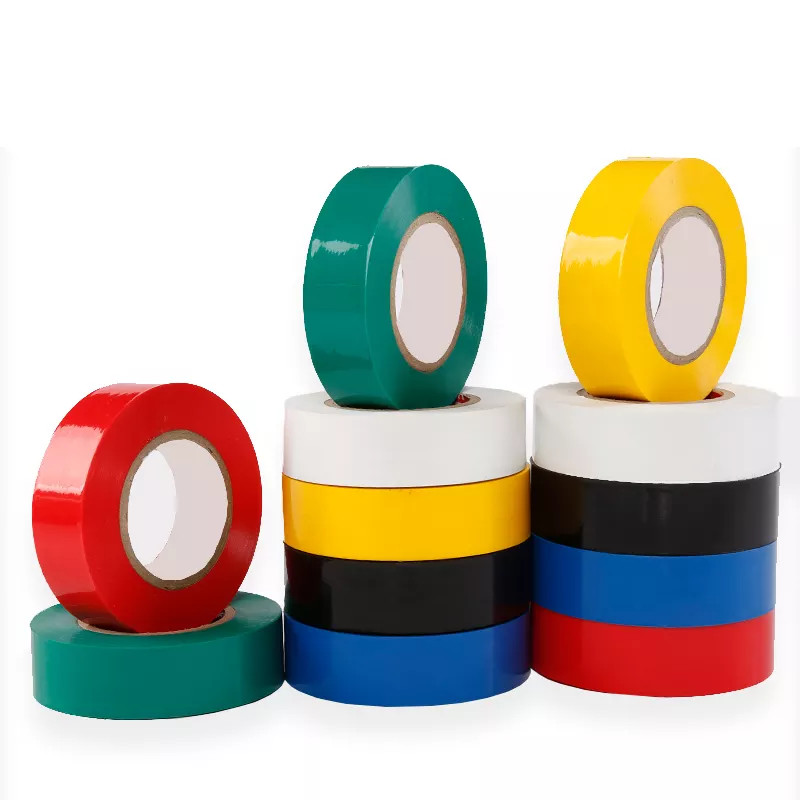

4. Color: black, grey, red, yellow, white, green, blue, green/yellow etc.



Features:

1. PVC Electrical Tape for all wire and cable joints rated up to 600 V.
2. insulating, water proof and excellent resistance to corrosion.
3. Environmental friendly pressure sensitive adhesive.
Unique glue-formulation and strong adhesive.



Usage:
For electronic componets insulation,wire winding,joint and repair.Also used for the binding,fixing,lapping,repairing,sealing and
protecting in the industrial process.

Purpose:
It adopts flame retardant and fireproof formula technology, which is especially suitable for insulation wrapping,sheath protection of wire and cable joints under thigh temperature and flammable environment. It can provide good flame retardant performance in places with fire protection requirements.

Characteristic:
It is made of high quality plasticized PVC flame retardant film coated with high performance pressure sensitive adhesive. Bright or foggy surface has excellent insulation,anti-aging,weather resistance, and super flame retardancy and adhesion.


Product Name Model NO. Carrier Color Film thickness (mm) Tensilestrength (kg/25mm) Adhesion to steel (N/25mm) Elongation at break (%) Voltage resistance (KV) validity date Months
Electrical adhesive tape AUTC650-1 PVC film colorful 0.11 1.5 0.15 150 4.5 6
AUTC650-2 0.13 2.0 0.15 160 5
AUTC650-3 0.13 2.0 0.15 160 5
AUTC650-4 0.20 3.5 0.15 200 8
AUTC650-5 0.19 3.5 0.18 200 8
AUTC650-6 0.19 3.5 0.15 200 8
AUTC650-7 0.15 2.8 0.15 160 6
AUTC650-8 0.15 2.8 0.18 160 6
AUTC650-9 0.18 3.2 0.18 180 8
AUTC650-10 0.18 3.2 0.18 180 8
AUTC650-11 0.18 3.2 0.18 180 8
AUTC650-12 0.18 3.2 0.18 180 8
AUTC650-13 0.19 3.5 0.18 200 8
AUTC650-14 0.13 1.5 0.15 120 4
AUTC650-15 0.18 2.0 0.15 160 6
