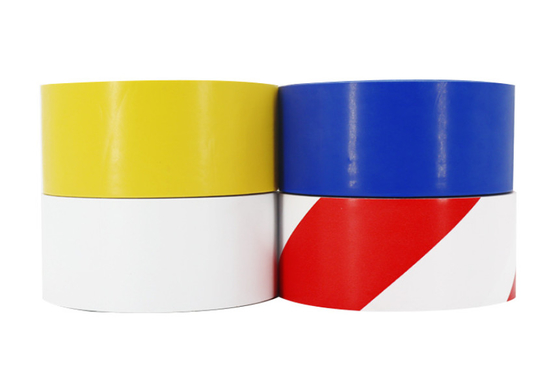

50mm White PVC Adhesive Tape Electrical Insulation Tape For Floor Warning

Place of Origin CHINA
Brand Name UNIFORM
Certification RoHS, ISO9001, CE, TUV
Model Number AUTC-PVCT-514
Minimum Order Quantity 5,000rolls
Price Negotiable
Packaging Details carton box and wooden box
Delivery Time 10-12days
Payment Terms T/T, Western Union
Supply Ability 50,000rolls/day
Product Details
Material PVC Colour White
Length 16m Width 50mm
Thickness 0.13mm-0.18mm Feature Waterproof
High Light

50mm White PVC Adhesive Tape

,

Electrical Insulation PVC Adhesive Tape

,

50mm electrical insulation tape

Leave a Message
Product Description

White Floor Warning Tape Non Adhesive Pvc Air Conditioner Protect Tape Pvc Non Adhesive Tape Roll



Use:
Paste it on the ground, wall and machine for prohibition, warning, reminder and emphasis.

When the marking tape is used for area division, it is called scribing tape; when it is used as a warning, it is called warning tape. But actually both are the same thing. When it is used for area division, there is no relevant standard or conventional statement to specify what color should be used for what kind of area. Green, yellow, blue, and white are all commonly used. When used as a warning, according to GB 2893-2001 "Safety Colors" and "Workplace Occupational Disease Hazard Warning Labels" issued by the Ministry of Health in 2003, single-color red, yellow, green and two-color red-white, green-white and Both yellow and black can be used as warning lines. Here, we recommend a distinction between scribing tape and warning tape. White, yellow and green are used for marking; red, red-white, green-white and yellow-black are used for warning.
When used as a warning, red means prohibition and prevention; red and white stripes mean that people are prohibited from entering a dangerous environment; yellow and black stripes mean reminding people to pay special attention; green and white stripes mean more eye-catching Cue people.
It is used to identify warning areas, divide hazard warnings, label and classify, etc.
There are various styles of black, yellow or red and white lines to choose from. The surface is abrasion-resistant and can withstand high-traffic pedaling.
Good viscosity, certain anti-corrosion, acid and alkali resistance, and anti-wear.





Features:
PVC film as carrier, coating rubber pressure-sensitive adhesive special for good insulation, Flame-resistant, voltage-resistance, cold-resistance and other properties


Specification:

Backing material: PVC
Adhesive: Rubber pressure-sensitive adhesive
Colors: black, white, red, green, yellow, etc.


Usage:
For integration wiring harness/electric wire winding/insulation protection/eliminate magnetic coil/Communications wiring, etc.

Product Name Model NO. Carrier Color Film thickness (mm) Tensilestrength (kg/25mm) Adhesion to steel (N/25mm) Elongation at break (%) Voltage resistance (KV) validity date Months
Electrical adhesive tape AUTC650-1 PVC film colorful 0.11 1.5 0.15 150 4.5 6
AUTC650-2 0.13 2.0 0.15 160 5
AUTC650-3 0.13 2.0 0.15 160 5
AUTC650-4 0.20 3.5 0.15 200 8
AUTC650-5 0.19 3.5 0.18 200 8
AUTC650-6 0.19 3.5 0.15 200 8
AUTC650-7 0.15 2.8 0.15 160 6
AUTC650-8 0.15 2.8 0.18 160 6
AUTC650-9 0.18 3.2 0.18 180 8
AUTC650-10 0.18 3.2 0.18 180 8
AUTC650-11 0.18 3.2 0.18 180 8
AUTC650-12 0.18 3.2 0.18 180 8
AUTC650-13 0.19 3.5 0.18 200 8
AUTC650-14 0.13 1.5 0.15 120 4
AUTC650-15 0.18 2.0 0.15 160 6







50mm White PVC Adhesive Tape Electrical Insulation Tape For Floor Warning 050mm White PVC Adhesive Tape Electrical Insulation Tape For Floor Warning 150mm White PVC Adhesive Tape Electrical Insulation Tape For Floor Warning 250mm White PVC Adhesive Tape Electrical Insulation Tape For Floor Warning 350mm White PVC Adhesive Tape Electrical Insulation Tape For Floor Warning 4



Applications

50mm White PVC Adhesive Tape Electrical Insulation Tape For Floor Warning 5



50mm White PVC Adhesive Tape Electrical Insulation Tape For Floor Warning 650mm White PVC Adhesive Tape Electrical Insulation Tape For Floor Warning 750mm White PVC Adhesive Tape Electrical Insulation Tape For Floor Warning 8
