Electrical Masking PI ESD Polyimide Tape Film Sublimation Heat Tape OEM

Place of Origin CHINA
Brand Name UNIFORM
Certification RoHS, ISO9001, CE, TUV
Model Number AUTC-PAT-606
Minimum Order Quantity 50,000rolls
Price Negotiable
Packaging Details carton box and wooden box
Delivery Time 10-12days
Payment Terms T/T, Western Union
Supply Ability 5000,000rolls/day
Product Details
Material Polyimide Colour Black
Length 30m Width 6mm
Thickness 0.05mm Feature Waterproof
High Light

OEM esd polyimide tape

,

OEM esd polyimide tape

,

OEM Sublimation Heat Tape

Leave a Message
Product Description

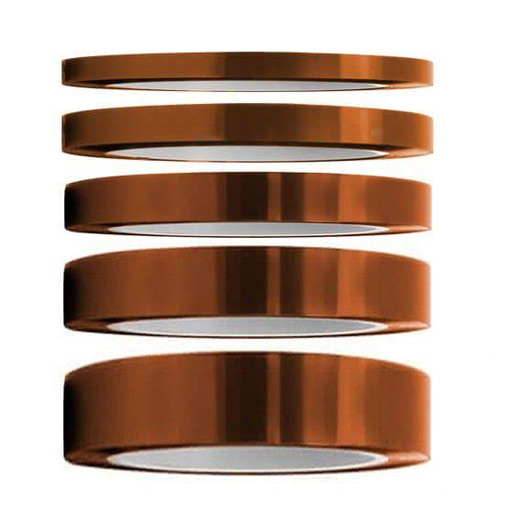

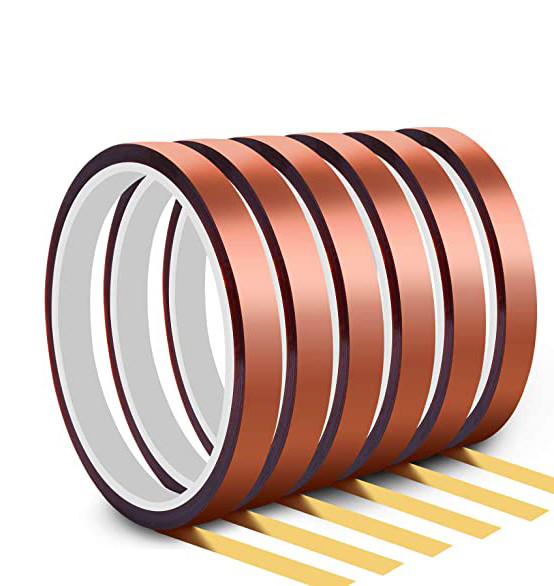

Heat Resistant High Temperature Electrical Industry Masking PI Polyimide Film Sublimation Heat Tape



Description
Single Sided Polyimide Tape is an amber polyimide tape with silicone pressure sensitive adhesive. Tape construction is ideal for applications that may require high temperature, chemical, and abrasion resistance with the benefit of transparency.

Application
·It can endure high temperature up to 260 °C within half an hour.
·electrical insulation, radiation resistance, solvement resistance ,heat resistance,etc.
·Its mostly applied for the motor insulation, protection of PCB during wave soldering etc.
Without any residue after the tape is removed from the gold finger.


Feature
  • Thin backing leaves a sharp paint line
  • Silicone adhesive offer high heat resistance,reducing failure due to softening,oozing and adhesive transfer.
  • Silicone adhesive remove cleanly without glue residue
  • Polyimide film offer excellent thermal,abrasion and chemical resistance while maintaining their flexibility.
  • Amber color makes tape placement obvious for both application and removal



Details

Backing
0.075mm Polyimide film
Adhesion
Silicone
Color
Amber
Thickness (mm)
0.11
Width(mm)
500mm
Length (m)
33M
Tensile Strength (N/25mm)
≥160
Elongation (%)
≥60
Breakdown strength (N/25mm)
≥200
Voltage resistance (KV)
12
Adhesion (N/25mm)
≥6
Temperature Resistance (℃)
260℃
