Black Electrician Wire Insulation Flame Retardant Plastic Tape Electrical High Voltage Self Adhesive Tape
| Place of Origin | CHINA |
|---|---|
| Brand Name | UNIFORM |
| Certification | RoHS, ISO9001, CE, TUV |
| Model Number | AUTC-PVCT-408 |
| Minimum Order Quantity | 5,000rolls |
| Price | Negotiable |
| Packaging Details | carton box and wooden box |
| Delivery Time | 10-12days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 50,000rolls/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | PVC | Colour | White, Yellow, Blue, Brown, Etc. |
|---|---|---|---|
| Length | 10m 15m 20m 25m 30m Customization Is Available | Width | 16mm 17mm 18mm 19mm 20mm 21mm Etc |
| Thickness | 0.11mm 0.12mm 0.13mm 0.14mm 0.15mm Etc | Feature | Waterproof |
| High Light | 0.12mm self adhesive insulation tape,0.14mm self adhesive insulation tape,electrical insulation tape flame retardant |
||
Product Description

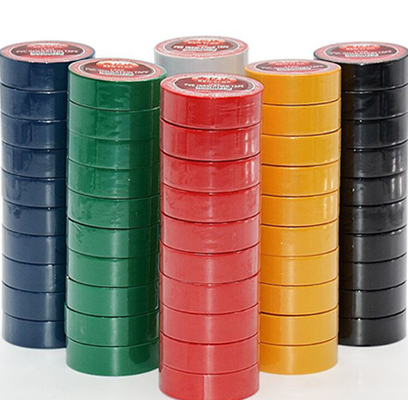

Black Electrician Wire Insulation Flame Retardant Plastic Tape Electrical High Voltage Self-adhesive Tape
Characteristic:
It is made of high quality plasticized PVC flame retardant film coated with high performance pressure sensitive adhesive. Bright or foggy surface has excellent insulation,anti-aging,weather resistance, and super flame retardancy and adhesion.
Features:
• Strong Adhesiveness ,good slip resistant and softness.
• Resistance to stretching
• Multi-colored available
• For insulating and binding electrical cables
• Long life warranty
• Resistance to Moisture
• High Voltage Resistance and Weather Resistance
• High Toughness and not broken easily
Usage:
Electrical Insulation Tape is ideal for most wiring projects and repairs including spliced wires,Cable insulation,Wire binding and protection
Purpose:
It adopts flame retardant and fireproof formula technology, which is especially suitable for insulation wrapping,sheath protection of wire and cable joints under thigh temperature and flammable environment. It can provide good flame retardant performance in places with fire protection requirements.
Specification:
1. Width:18mm,19mm or at your request.
2. Length: 10yds, 20yds, 10m, 20m or according to client's requirement
3. Thickness: 0.09mm-0.25mm
4. Color: black, grey, red, yellow, white, green, blue, green/yellow etc.
| Product Name | Model NO. | Carrier | Color | Film thickness (mm) | Tensilestrength (kg/25mm) | Adhesion to steel (N/25mm) | Elongation at break (%) | Voltage resistance (KV) | validity date Months |
| Electrical adhesive tape | AUTC650-1 | PVC film | colorful | 0.11 | 1.5 | 0.15 | 150 | 4.5 | 6 |
| AUTC650-2 | 0.13 | 2.0 | 0.15 | 160 | 5 | ||||
| AUTC650-3 | 0.13 | 2.0 | 0.15 | 160 | 5 | ||||
| AUTC650-4 | 0.20 | 3.5 | 0.15 | 200 | 8 | ||||
| AUTC650-5 | 0.19 | 3.5 | 0.18 | 200 | 8 | ||||
| AUTC650-6 | 0.19 | 3.5 | 0.15 | 200 | 8 | ||||
| AUTC650-7 | 0.15 | 2.8 | 0.15 | 160 | 6 | ||||
| AUTC650-8 | 0.15 | 2.8 | 0.18 | 160 | 6 | ||||
| AUTC650-9 | 0.18 | 3.2 | 0.18 | 180 | 8 | ||||
| AUTC650-10 | 0.18 | 3.2 | 0.18 | 180 | 8 | ||||
| AUTC650-11 | 0.18 | 3.2 | 0.18 | 180 | 8 | ||||
| AUTC650-12 | 0.18 | 3.2 | 0.18 | 180 | 8 | ||||
| AUTC650-13 | 0.19 | 3.5 | 0.18 | 200 | 8 | ||||
| AUTC650-14 | 0.13 | 1.5 | 0.15 | 120 | 4 | ||||
| AUTC650-15 | 0.18 | 2.0 | 0.15 | 160 | 6 |
